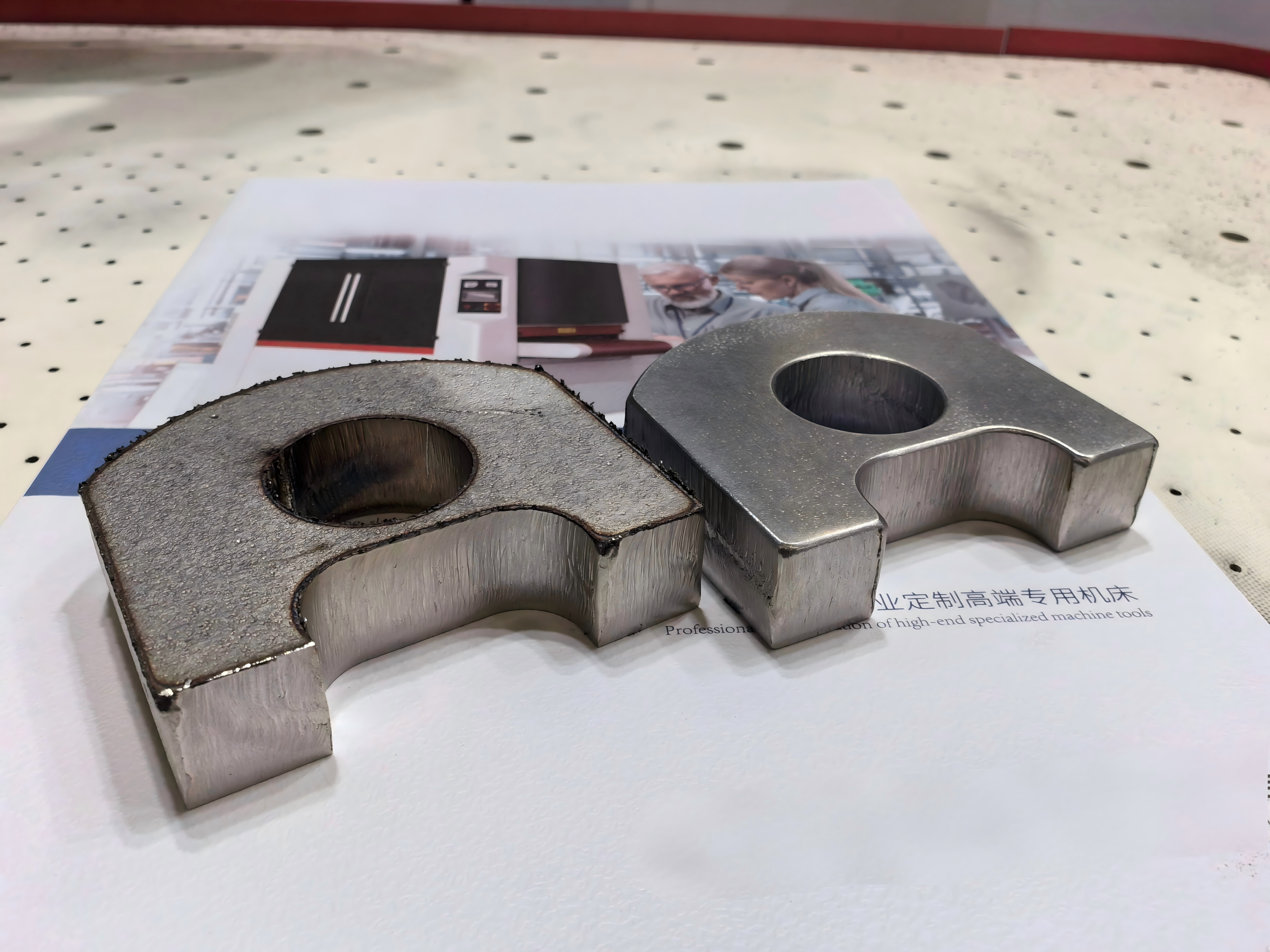

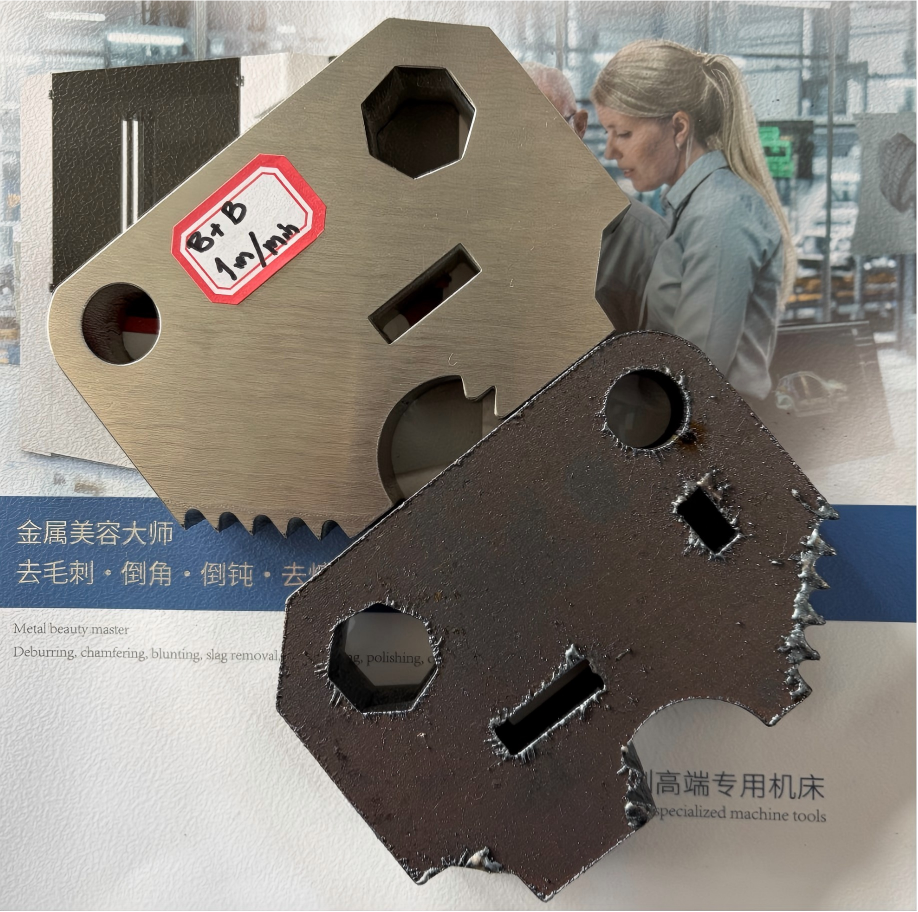

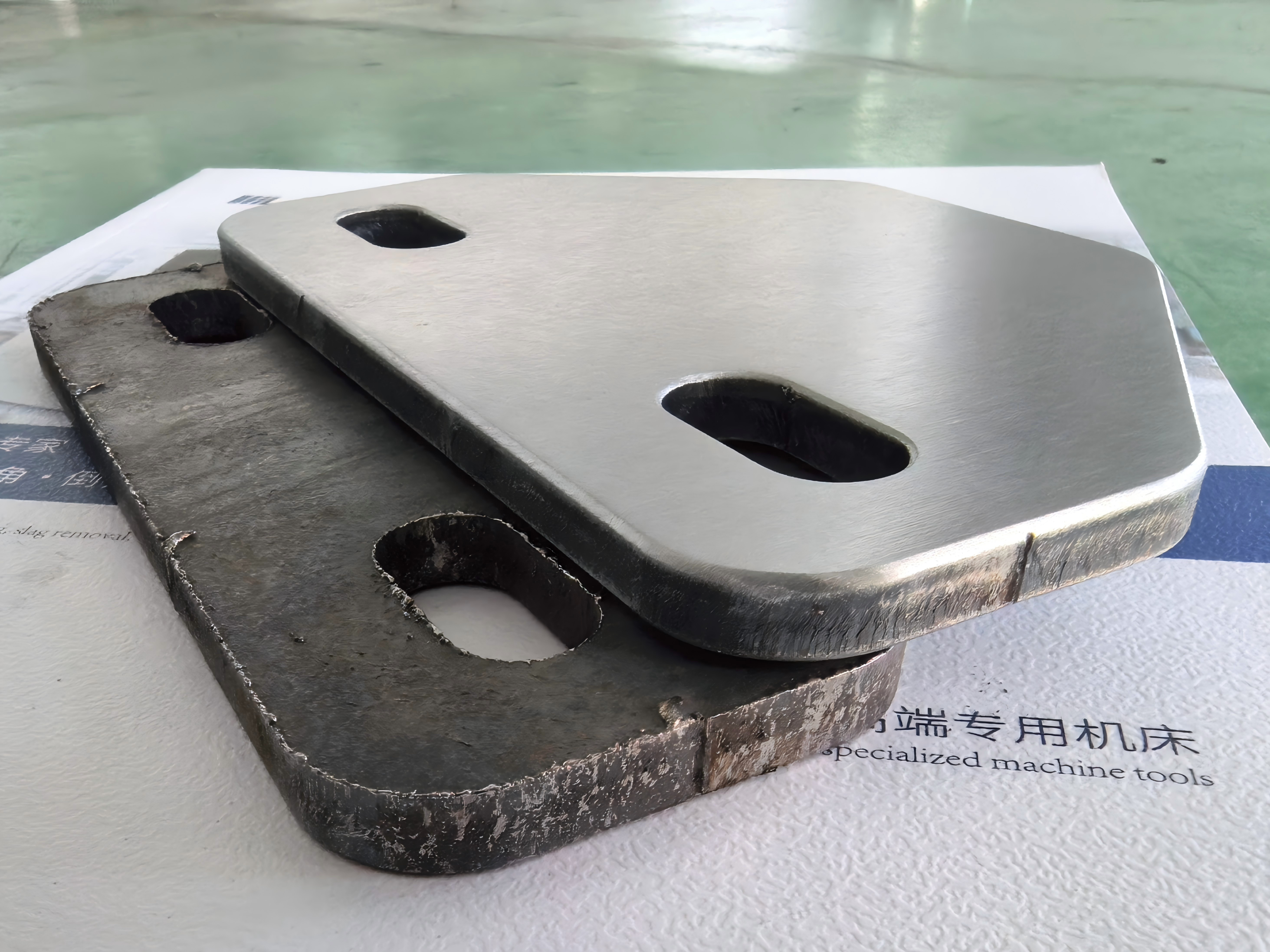

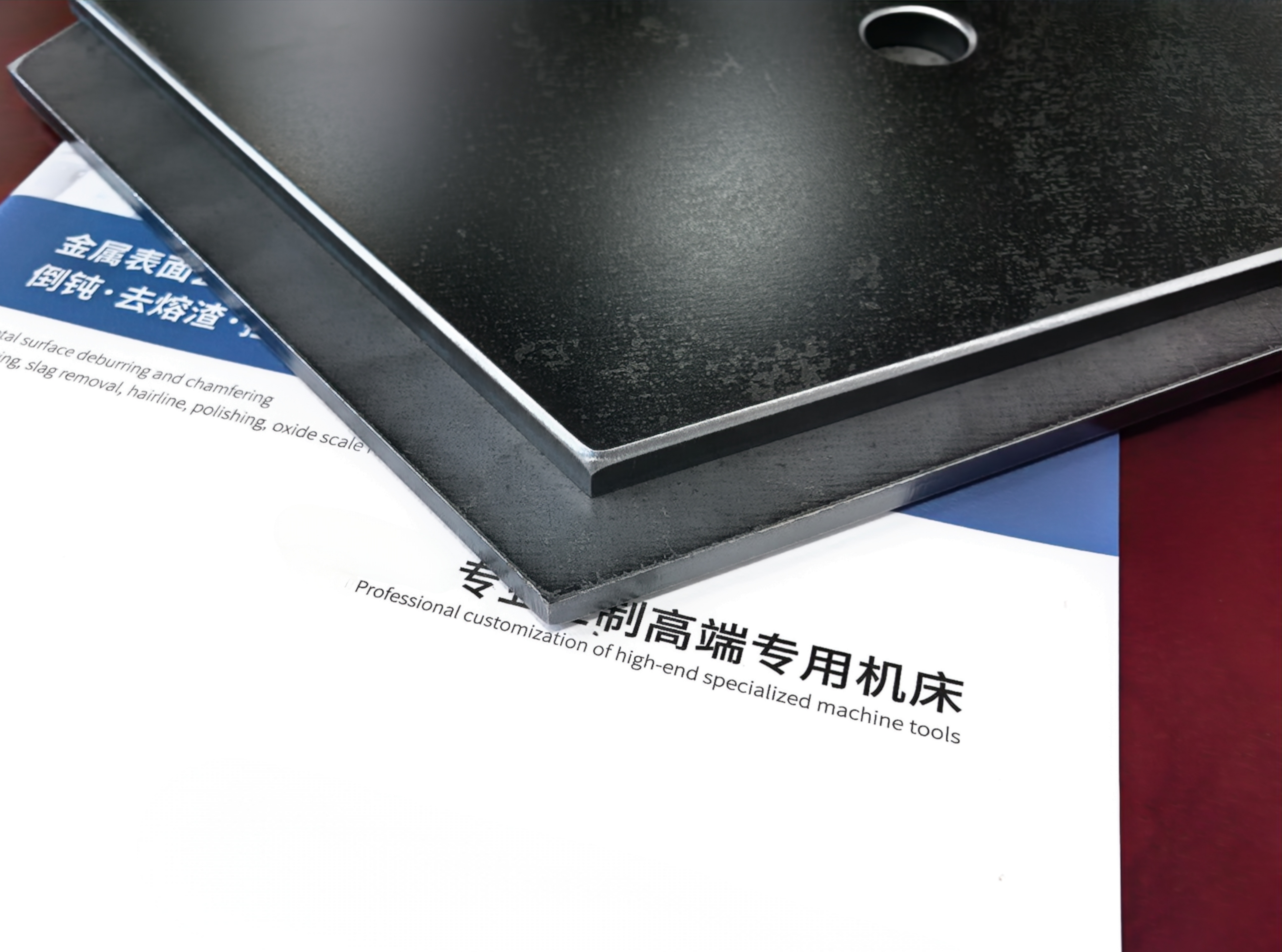

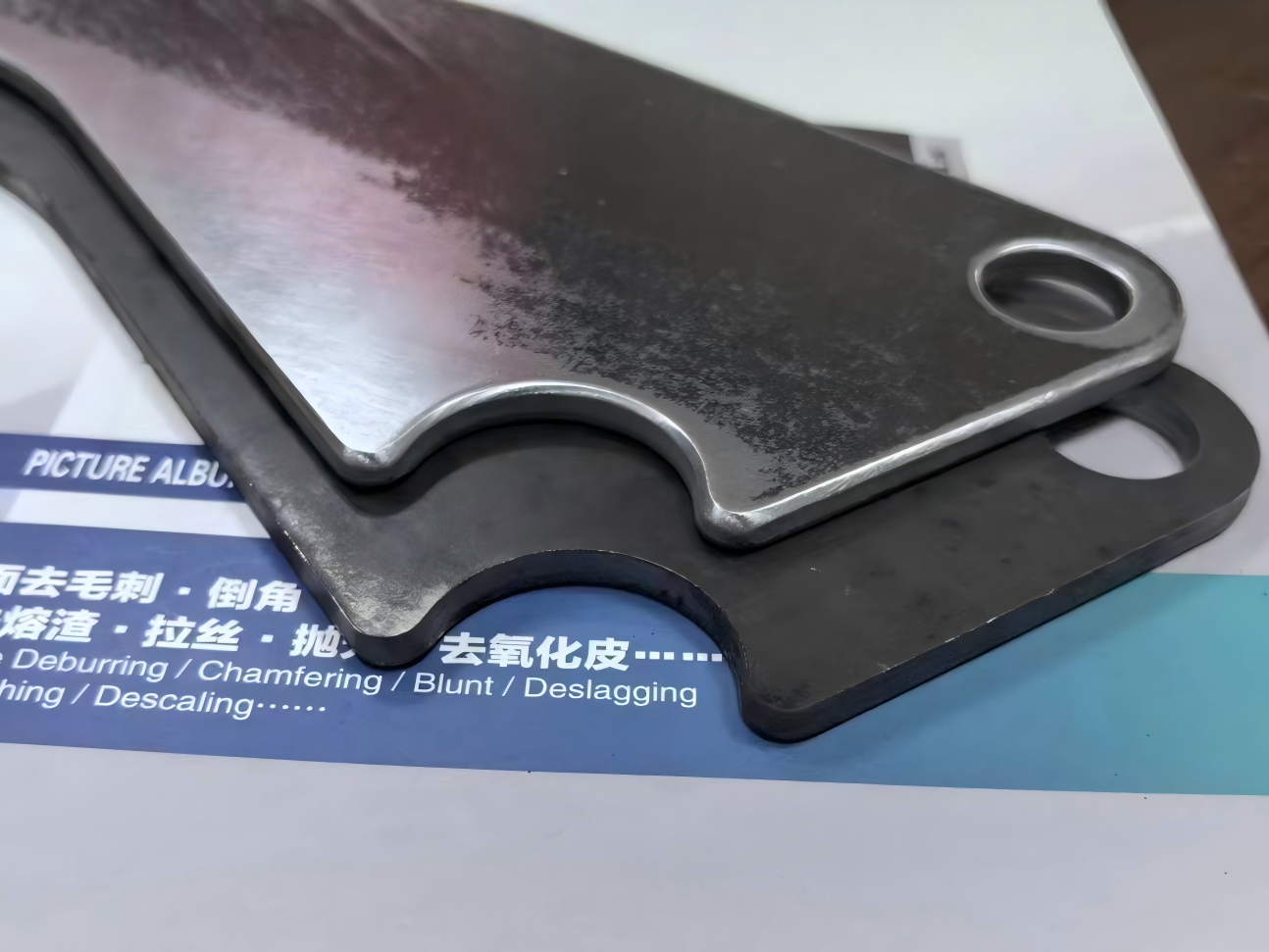

1. Equipment function: Pre grinding, drawing, polishing, scratch removal, deburring, chamfering and blunting of workpiece surfaces such as laser cutting, cutting, stamping, waterjet cutting, plasma cutting, etc

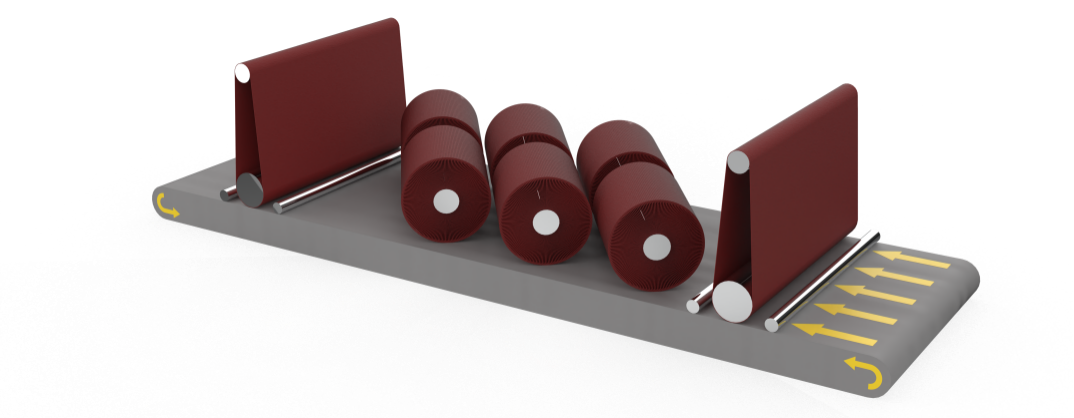

2. Equipment combination: wide sand belt+universal roller brush single or multiple combination structures
3. Equipment processing width: 800mm, 1000mm, 1350mm, 1600mm
4. Equipment processing thickness: 0.5-80mm
5. Conveying and feeding speed: 0.5-6m/min (variable frequency adjustable)
6. Optional feeding methods:
(1) Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size ≥ 10mm × 10mm)
(2) Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size ≥ 50mm × 50mm)
7. Four column synchronous lifting, independent lifting of roller brush station, servo control for lifting, accuracy of 0.01mm.
8. Adjust machining parameters using the CNC PLC touch screen of the entire machine.
9. Adjust machining parameters through the touch screen of the CNC PLC for the entire machine.
